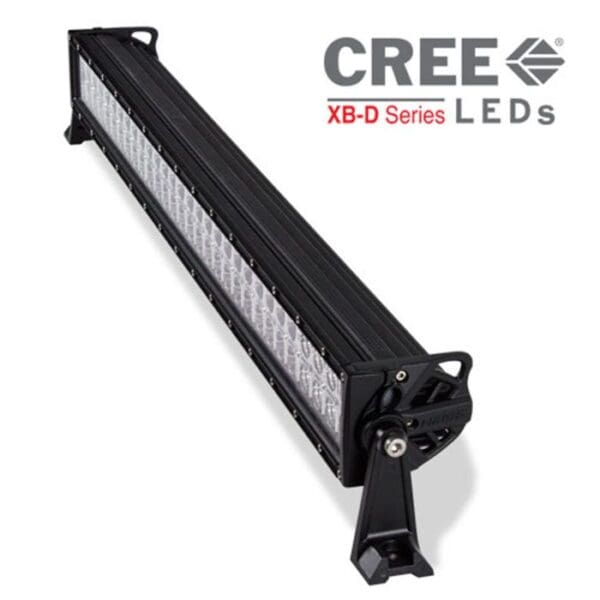

Heise 30-Inch Double Row Light Bar

SPECS

Input Voltage: 10-30V DC
Power Consumption: 180W
(60-3W CREE LEDs)
Raw Lumens: 14400
LUX @ 10M: 870
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Length of Bar without Mounting Brackets: 32.16″
Hole Dimensions: Brackets turned inward – 31.25″
Brackets turned outward – 33.75″
Mounting Bolt Drill – .25″
Height of Light Bar Itself: 3″
Depth of Light Bar Itself: 3.50″
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION

Operating Temperature: -40°C to +60°C
Current Consumption: 9.5 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
